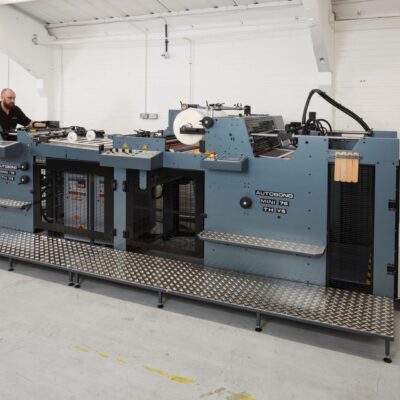

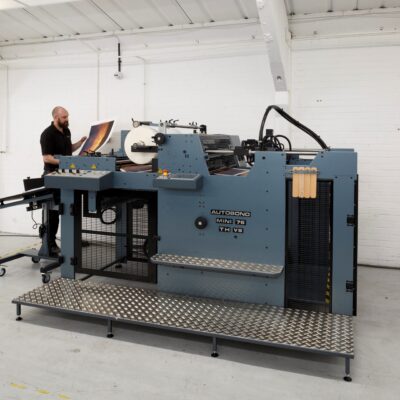

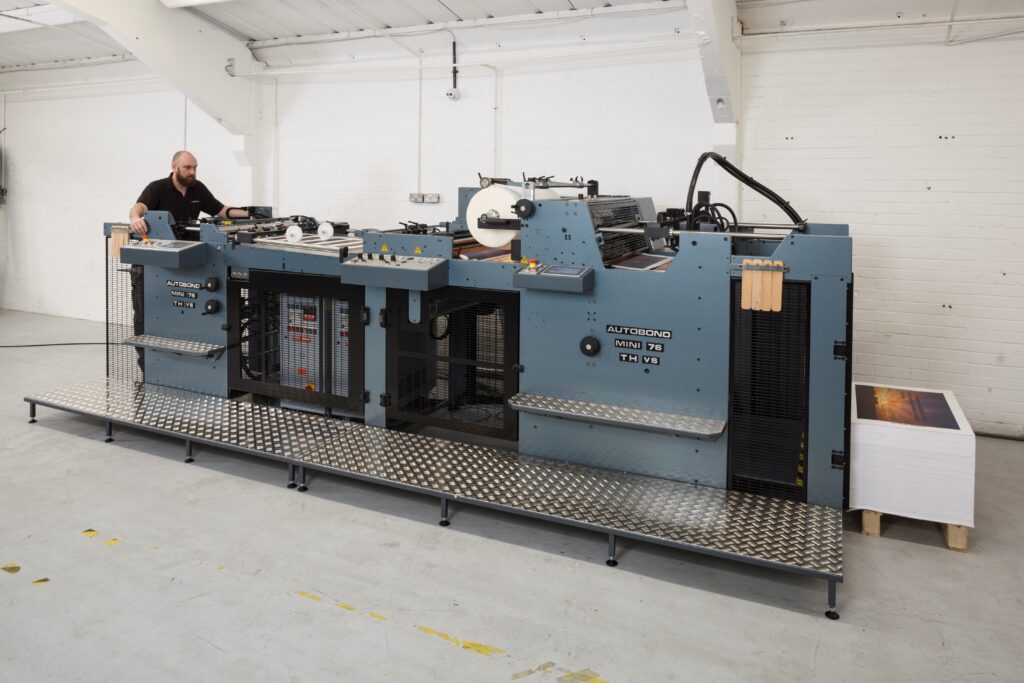

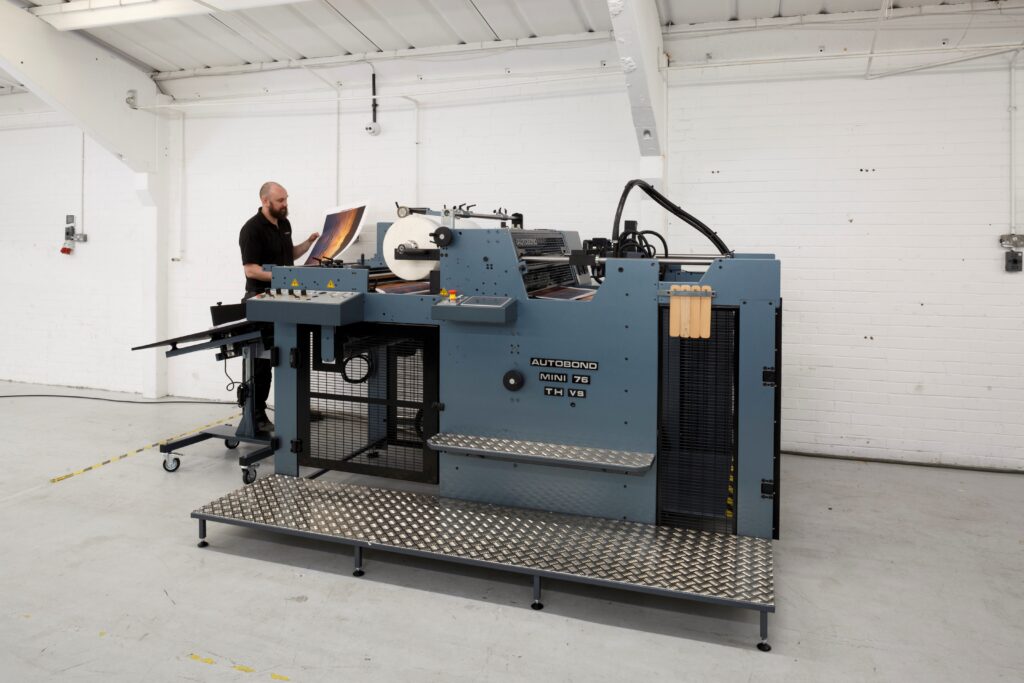

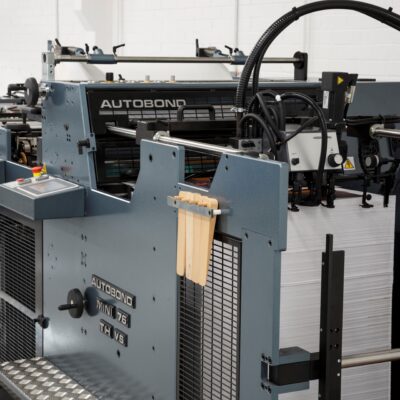

Autobond offers a wide range of commercial laminating machines. The Autobond Mini 76 TH is a quick make ready, extremely versatile thermal laminator, with excellent laminating productivity. This format laminator can run up to B1+ (29.5” x 41.73”) in portrait orientation. It is Autobond’s most widely distributed laminator worldwide. It has a modular design to add options such as a perfector, stacker, in-line spot UV coating, or an in-line foiling machine. Please see below for more details on the Mini 76 TH thermal laminating machine.

1 or 2 sided, sheet fed, thin film, thermal laminator for medium and long run lengths
Max sheet size: 76 x 105 cm (29.5” x 41.73”)
Min sheet size: 28.5 cm x 32 cm (11.5” x 12.5”)
Max speed: 60 m/min (200 ft/min)
115 gsm (80 lb text) to 650 gsm (24 pt)

Quick make-ready
Easy operation
Small footprint
Heavy-duty build quality

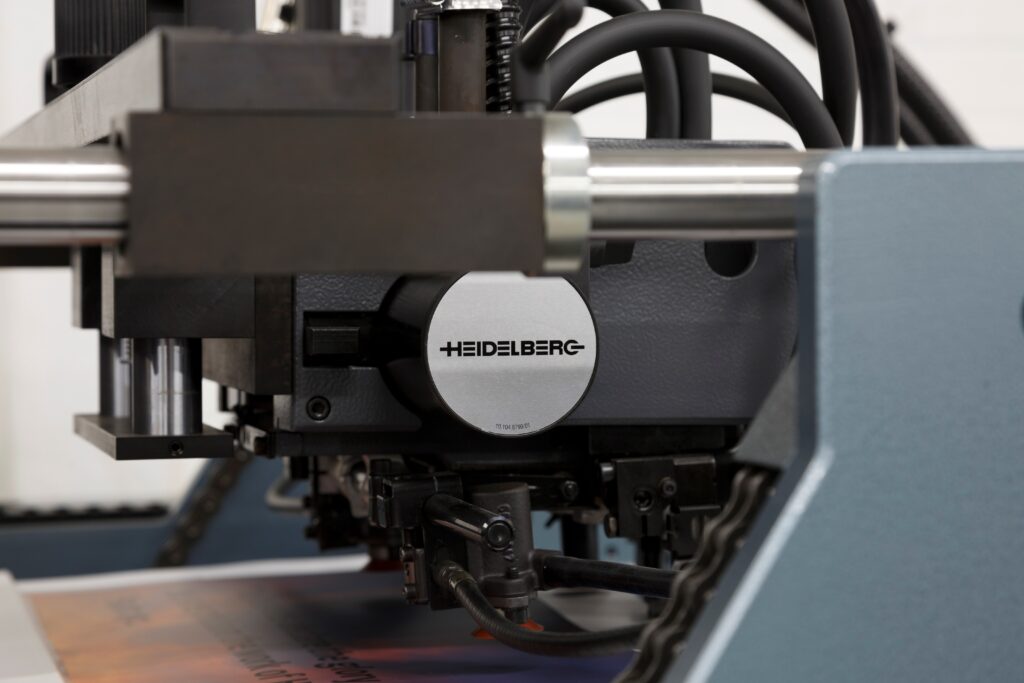

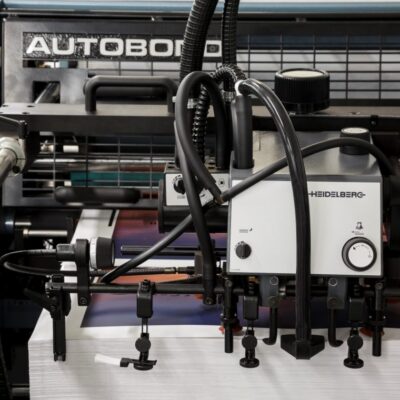

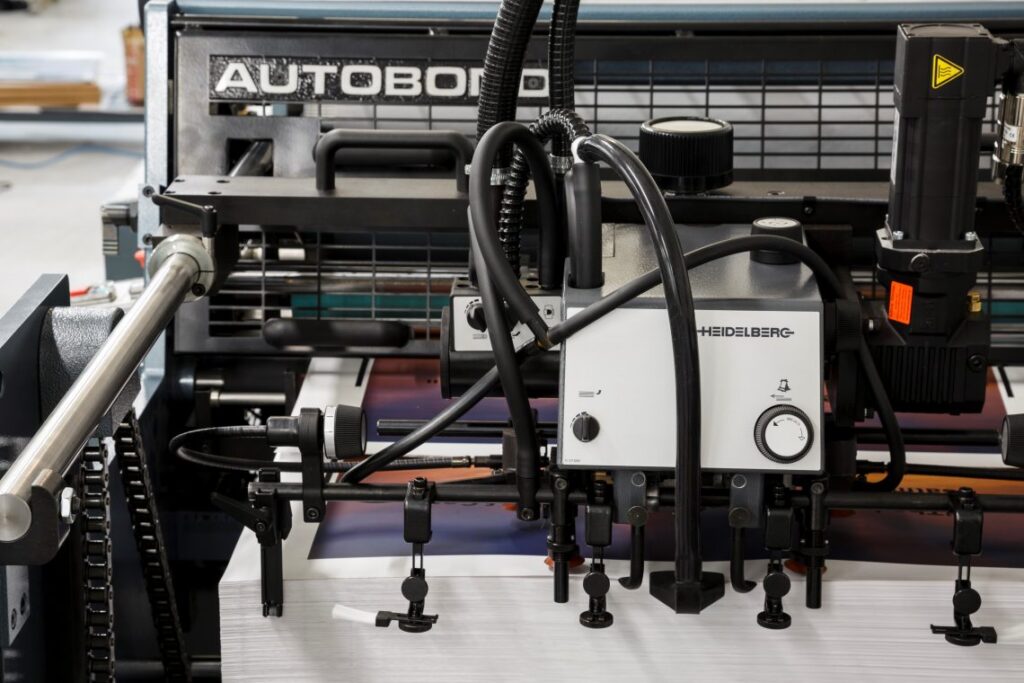

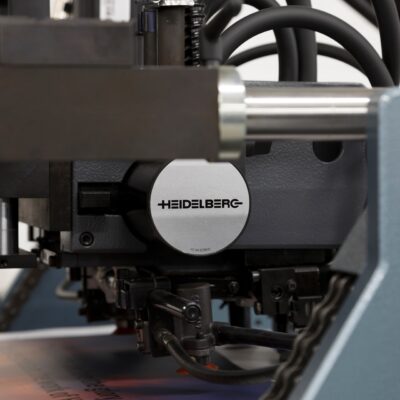

  • Heidelberg Speedmaster feed head
  • Rising pile, back separation, stream feeder
  • Feed head processor controlled for accurate under-lap
  • Max pile height of 1.2 m (47”)


  • Water heated chrome laminating roller
  • Digital temperature control up to 135°C (275F)
  • Rubber counter-pressure roller
  • Pneumatic nip pressure up to 6 metres tonnes
  • Film mounted on a quick-change inflatable air-shaft
  • Film roll slitting and perforating mechanisms
  • Pneumatic clutch ensures precise film tension


  • Bump/burst separator runs in-line
  • Features include adjustable pro-active anti-curl bar, secondary perforating mechanism, and in-feed hold rollers with pneumatic clutch to maintain web tension
  • Delivery into vibrating wheeled jogger table with under-sheet adjustable air control

Optional Features


  • Sheets are laminated top and bottom in one pass
  • Rubber counter-pressure roller becomes water heated
  • Additional heated roller, quick-change inflatable air-shaft, and perforating mechanism for 2nd roll of film


  • Lamination of PSA magnet roll onto bottom of sheets
  • Cantilevered air-shaft for quick mounting of magnet roll
  • Inflatable air-shaft for automatic take-up of release liner backing paper

Stacker – close coupled

  • Descending pile delivery
  • Close-coupled to bump separator

Stacker – vacuum

  • Descending pile delivery
  • Vacuum belt frame table for single sheet or shingle sheet transfer
  • Anti-static bar and additional operating touch screen

Laminating Single Side



Laminating Two Sides In One Pass
