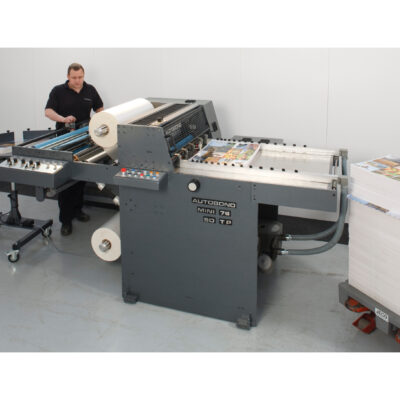

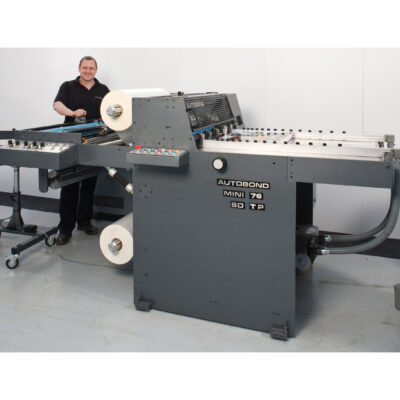

1 or 2 sided, sheet fed, thin film, thermal laminator for short and medium run lengths
Max sheet size: 74 x 105 cm (29” x 41 1/4”)
Min sheet size: 32 x 22.5 cm (12.5” x 9”)
Max speed: 45 m/min (150 ft/min)
150 gsm (100 lb text) to 650 gsm (24 pt)

Quick make-ready
Easy operation
Small footprint
Heavy-duty build quality

Feeder

  • Heidelberg-Stahl suction drum
  • Bottom separation, continuous run, top loading
  • Air inflates the sheets from the sides, allowing them to float on a bed of air
  • Operator replenishes sheets on the run, thus providing continuous feed

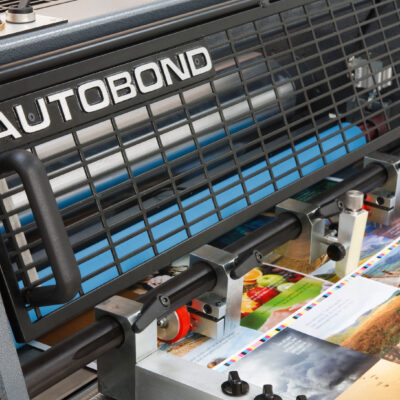

Laminator

  • Water heated chrome laminating roller
  • Digital temperature control up to 120°C (248°F)
  • Rubber counter-pressure roller
  • Pneumatic nip pressure up to 6 metres tonnes
  • Film mounted on a quick-change inflatable air-shaft
  • Film roll slitting and perforating mechanisms
  • Pneumatic clutch ensures precise film tension

Sheeter

  • Bump/burst separator runs in-line
  • Features include adjustable pro-active anti-curl bar, and in-feed hold rollers with pneumatic clutch to maintain web tension
  • Delivery into vibrating wheeled jogger table with under-sheet adjustable air control

Optional Features


Perfector

  • Sheets are laminated top and bottom in one pass
  • Rubber counter-pressure roller becomes water heated
  • Additional heated roller, quick-change inflatable air-shaft, and perforating mechanism for 2nd roll of film

Magnet

  • Lamination of PSA magnet roll onto bottom of sheets
  • Cantilevered air-shaft for quick mounting of magnet roll
  • Inflatable air-shaft for automatic take-up of release liner backing paper
