1 or 2 sided, sheet fed, thin film, thermal laminator for short and medium run lengths

Max sheet size: 53 x 75 cm (20 3/4” x 29.5”)

Min sheet size: 32 x 22.5 cm (12.5” x 9”)

Max speed: 50 m/min (164 ft/min)

115 gsm (80 lb text) to 650 gsm (24 pt)

Quick make-ready

Easy operation

Small footprint

Heavy-duty build quality

Feeder

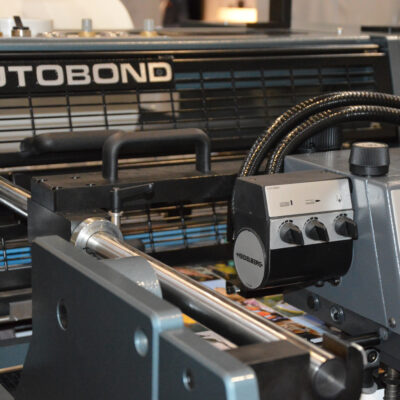

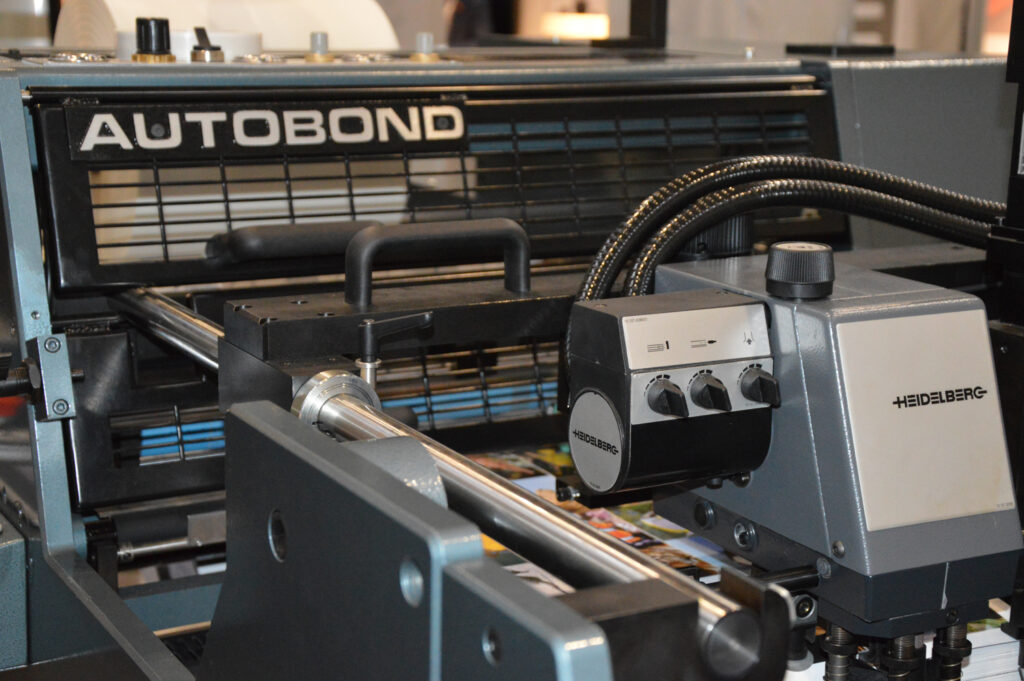

  • Heidelberg Speedmaster 52 feed head
  • Rising pile, back separation, stream feeder
  • Feed head processor controlled for accurate under-lap
  • Max pile height of 1.1 m (43”)

Laminator

  • Electrically heated or water-heated laminating roller
  • Digital temperature control up to 120°C (248°F)
  • Rubber counter-pressure roller
  • Pneumatic nip pressure

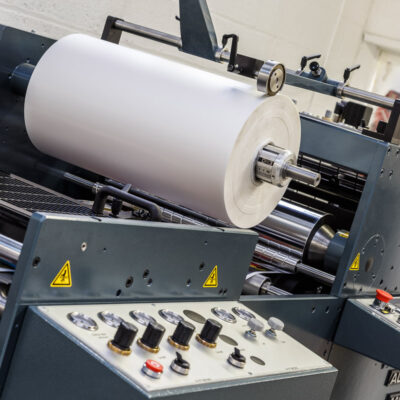

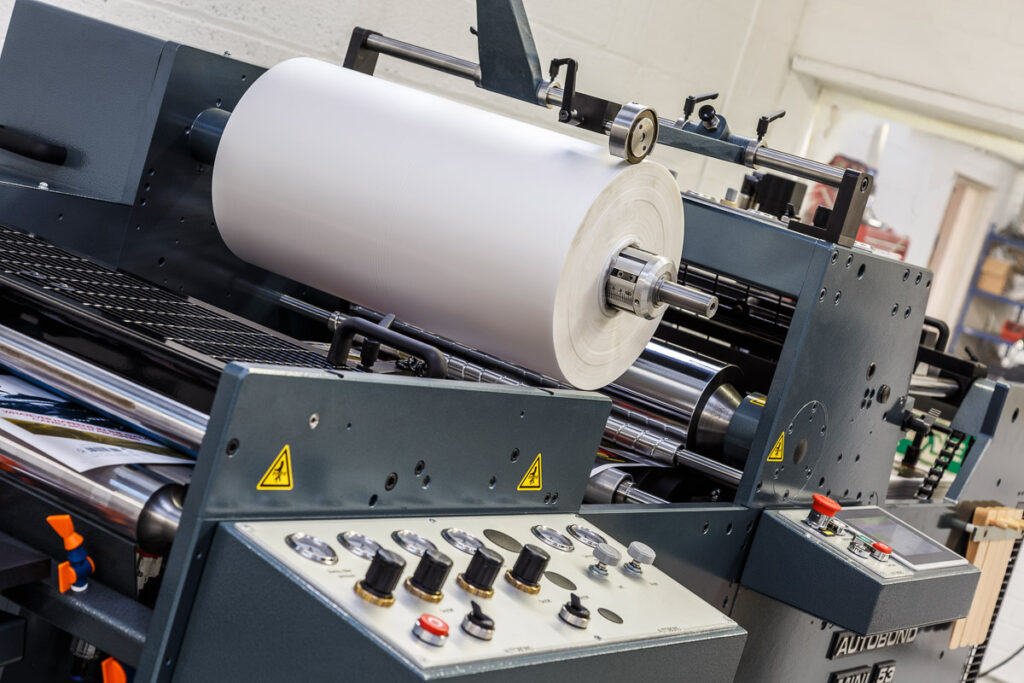

  • Film mounted on a quick-change airshaft
  • Film roll perforating mechanism

Sheeter

  • Integral Bump separator runs in-line
  • Features include in-feed hold rollers, adjustable anti-curl bar, and variable speed bump rollers
  • Delivery into vibrating jogger table with under-sheet adjustable air control

Optional Features

Perfector

  • Sheets are laminated top and bottom in one pass
  • Rubber counter-pressure roller becomes electrically heated
  • Additional heated roller, quick-change airshaft, and perforating mechanism for 2nd roll of film

There is no other manufacturer of industrial laminating machines known for consistent quality, reliability, and productivity than Autobond. Visit one of our distributors or contact us to invest in an Autobond laminating machine.
