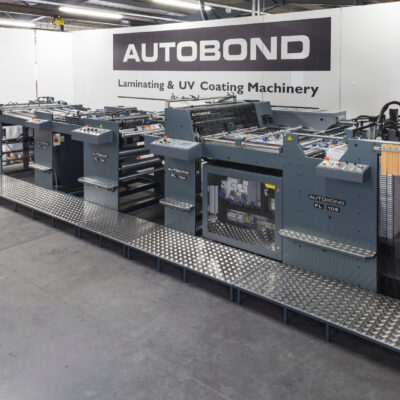

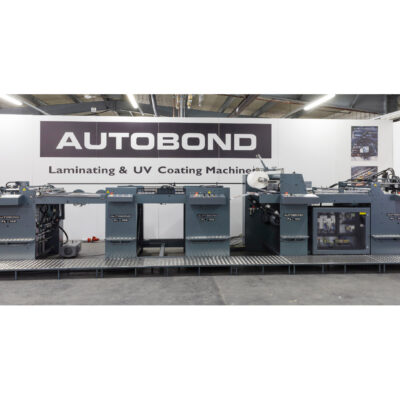

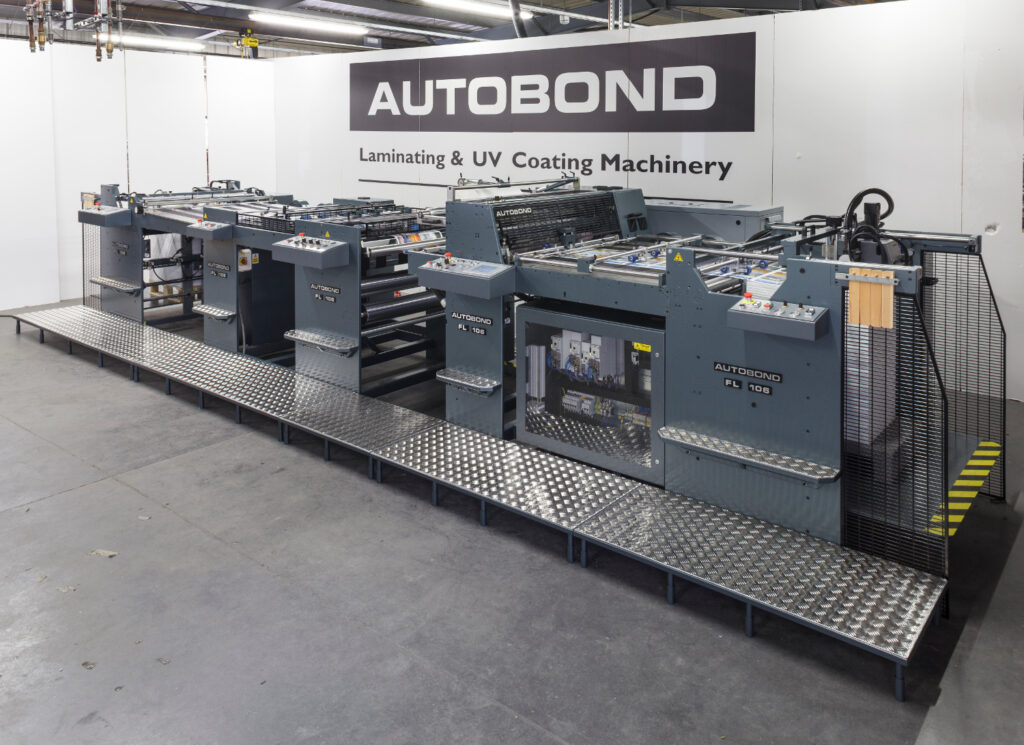

1 or 2 sided, sheet fed, thin film, thermal laminator for long run lengths

Max sheet size: 106 x 106 cm (41 3/4” x 41 3/4”)

Min sheet size: 28.5 cm x 32 cm (11.5” x 12.5”)

Max speed: 120 m/min (394 ft/min)

90 gsm (60 lb text) to 650 gsm (24 pt)

Quick make-ready

Easy operation

Heavy-duty build quality

Feeder

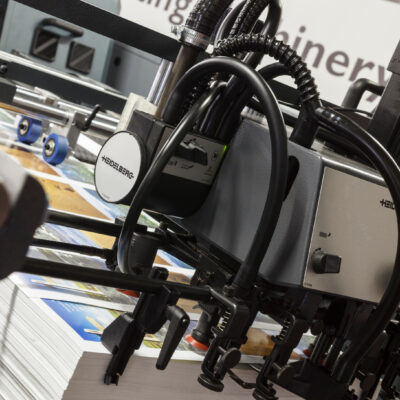

  • Heidelberg Speedmaster feed head
  • Rising pile, back separation, stream feeder
  • Vacuum feed table
  • Servo driven mechanical front-lay registration
  • Max pile height 1.2 m (47”)

Laminator

  • Water heated chrome laminating roller
  • Digital temperature control up to 120°C (248°F)
  • Rubber counter-pressure roller
  • Pneumatic nip pressure up to 6 metric tonnes
  • Film mounted on a quick-change, micro-adjustable, inflatable air-shaft
  • Film roll slitting and perforating mechanisms
  • Pneumatic clutch ensures precise film tension



Sheeter

  • Steer & pull separator runs in-line
  • Chill rollers to cool laminated web
  • Adjustable pro-active, anti-curl bar
  • Secondary perforating mechanism
  • Pneumatic clutch on in-feed hold rollers to maintain web tension
  • Anti-static bar

Stacker

  • Descending pile delivery
  • Vacuum belt frame table for single sheet or shingle sheet transfer
  • Anti-static bar and additional operating touch screen
