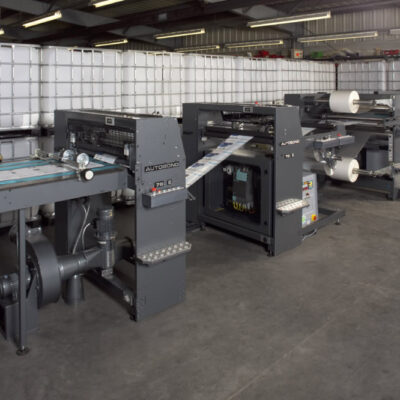

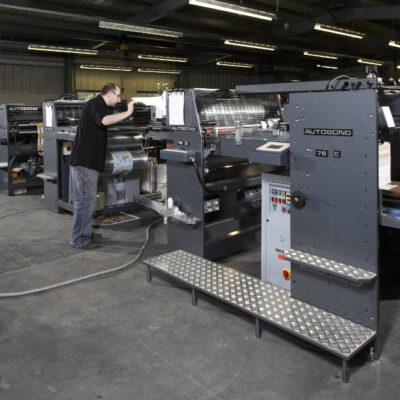

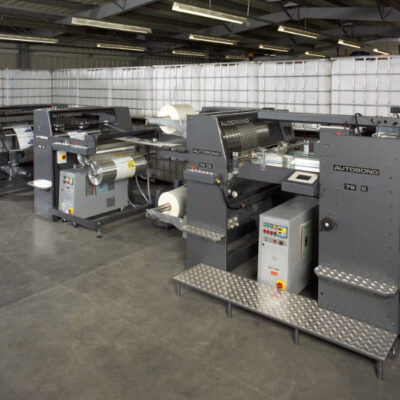

Edgemaster 76


Autobond offers a wide range of dedicated encapsulators in addition to a new range of multifunctional thin film laminators with high speed thick film and encapsulating capability.  The Edgemaster 76 is a dedicated two sided, high speed thick film flush cut, and encapsulating machine, designed specifically for large run dedicated two sided 3,5, and 10 mil work. The Autobond Multi 76 TPE-H-CC is a B1+ (29.5” x 41.73”) max format, dual function one and two sided thin film thermal laminator (1-1.7 mil), with capability of running 1.7, 3, 5, and 10 mil flush cut and encapsulation work. Please see below for more details on Autobond’s encapsulating machines.

Medium to long run, thick film flush cut or encapsulation (edge-seal) work

Max sheet size: 74 x 105 cm (29” x 41 1/4″)

Min sheet size: 14 x 21.5 cm (5.5″ x 8.5″)

Max speed: 60 m/min (200 ft/min)

115 gsm (80 lb) to 650 gsm (24 pt)

Feeder

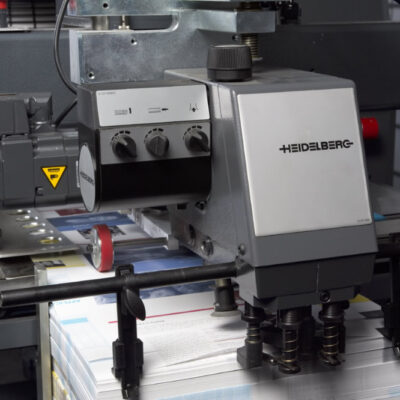

  • Heidelberg Speedmaster feed head
  • Angled feed table with micro-adjustable side-lay
  • Servo driven front lays to give a precise gap between sheets
  • Max pile height 1.2 m (47”)

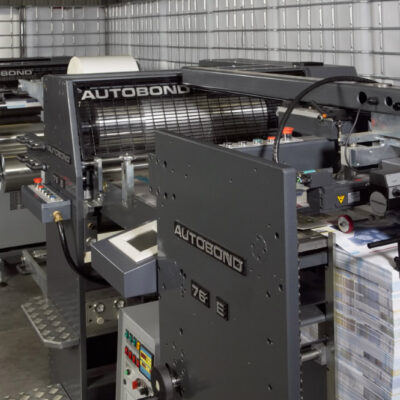

Encapsulator

  • Application of polyester films at 75 micron (3 mil), 125 micron (5 mil), and 250 micron (10 mil) thickness
  • 2 x 300 mm (12″) diameter aluminum pre-heat rollers paired with 2 x 65mm (2.5”) soft durometer, electrically heated rubber nip rollers
  • Film-mounted on quick-change inflatable air-shafts which are micro-adjustable laterally
  • Side slitters and edge trim removal
  • Pneumatic clutch ensures precise film tension
  • Digital temperature control up to 140°C (284°F)
  • 4 x ambient air blast fans, two on top and two on bottom and 2 x 300mm (12”) diameter water filled chill rollers
  • 508 mm (20”) Max OD roll capacity

Cross Cutter

  • Servo driven flying knife for separation of film
  • Accurate for a single cut for flush work or double cut for tab work
  • Delivery onto a shingle table for collection in a vibrating jogger table

See our list of distributors and contact us to invest in an Autobond encapsulation lamination machine.
